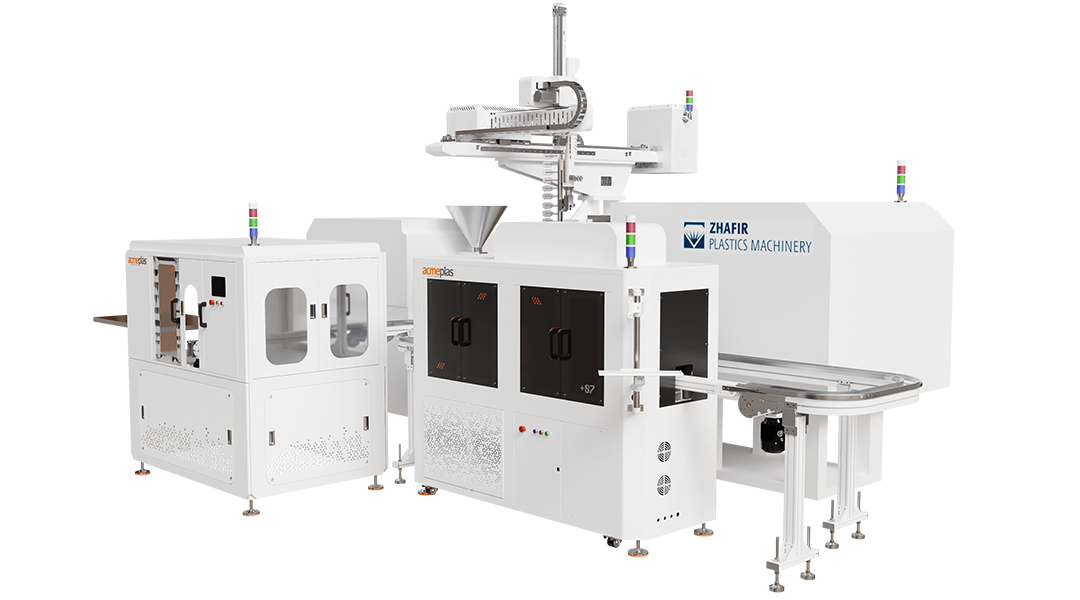

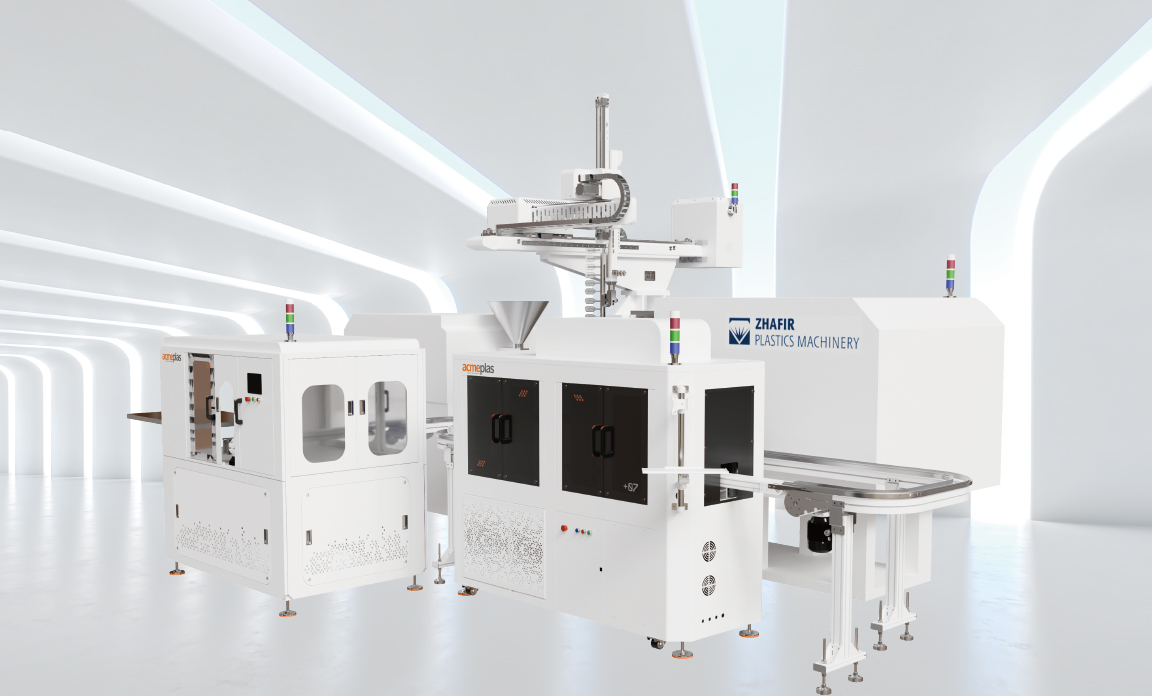

One-step Injection-Blowing Horizontal Injection Molding Machine System Case
The one-step injection-blow horizontal machine is a specialized model developed from traditional horizontal injection molding machines. Its core technology lies in “one-step molding”:
Process Integration: The three major processes—preform injection molding, blow molding, and product removal—are highly integrated into a single machine.
Waste Heat Utilization: The process fully utilizes the residual heat generated during preform injection molding for blow molding, eliminating the need for secondary heating—a key factor in its high efficiency and energy savings.
Download the White Paper
Core Strengths
End-to-end supply chain integration capabilities
Advantages: We have established a comprehensive process spanning the supply of critical equipment, system integration, and end-product manufacturing. With independent control over key stages across the entire industry chain, we are able to provide one-stop services.
System integration capabilities
Advantages: Emphasizes production line integration rather than individual equipment manufacturing, ensuring seamless collaboration among modules and reducing the complexity and risks associated with customers managing their own integration.
Pilot production validation
Advantages: Customers do not need to perform repeated debugging on their own production lines, which significantly reduces production risks and ensures the system is “plug-and-play.”
Modular Production Line Design
The automation system is compatible with injection molding machines from multiple brands.
Product changeovers require only the replacement of the mold core.
With multiple configuration options for automation equipment, setup time is reduced and utilization rates are increased.
Data-driven, continuous iteration
Advantages: Design and system iterations are continuously driven by real-world production feedback, creating a closed-loop cycle of “production → feedback → optimization,” resulting in a system that becomes increasingly stable and efficient over time.
Four Key Indicators: “Three highs, one low”
① High quality, ② High consistency, ③ High efficiency, ④ Low labor costs
One-step Injection-Blowing Horizontal Injection Molding Machine System Case
By choosing an acmeplas machine as your foundation, you hold the key to the most efficient preform systems. When designing complete turnkey systems, we work closely with leading industry and market partners on your behalf.
acmeplas offers you a one-stop solution, including injection molding machines, molds, hot runners, automation equipment, dryers, chillers, and other peripheral equipment—not to mention our comprehensive expertise in one-step injection-blow molding.
Complete Process for Project Implementation
Project Concept
Conceptual Study
Project Work
Project Implementation
System Assembly and Testing
Trial Production and Acceptance
On-site installation
Process and Production Support
Project Concept
Part Concept Definition: Determine the product type (e.g., thin-walled containers, IML jam jars, yogurt cups, etc.); establish the product’s basic dimensions, capacity, and wall thickness range. Preliminary; determine the label coverage area (side label, full wrap, partial coverage, etc.).
Part Optimization (Weight, Functionality, Design, Decoration): Optimize the product structure to ensure proper draft angles and uniform wall thickness; design label positioning ribs or adhesion areas in conjunction with the IML process; evaluate the need for features such as heat resistance, scratch resistance, and high transparency; determine the style of decorative patterns, color requirements, and printing precision.
Technical Evaluation (Process): Assess the feasibility of the IML process (whether the label can adhere stably and whether the molding cycle meets requirements); Preliminarily determine whether stacked molds or multi-cavity molds are required; identify potential risks (e.g., label shifting, ink bleeding, uneven cooling)
Material Evaluation/Definition: Select the product substrate (PP, PE, PET, etc.); select label materials (films of the same material, such as BOPP, PP synthetic paper); confirm the type of label ink (heat-resistant, non-migrating); determine auxiliary materials (sealing rings for vacuum adhesion, model of electrostatic generator)
Conceptual Study
Competitor and Market Analysis: Collect case studies of IML applications for similar products; analyze the target market’s requirements for label appearance and durability.
Preliminary Mold Flow Analysis: Use mold flow analysis software to simulate the filling, holding pressure, and cooling processes; verify whether plastic flow in the label area is uniform to prevent label curling.
Label-Substrate Compatibility Testing: Test the hot-melt bond strength between the label and the plastic melt; verify whether the label will shrink or discolor under high temperature and pressure.
Preliminary Equipment Selection Plan: Determine the required injection molding machine tonnage and injection speed (high-speed machines recommended); preliminarily select the robot type (side-entry or top-entry); plan the basic configuration of the automated post-processing line (stacking, packaging).
Project Work
Detailed Mold Design: Design the layout of cavities, cores, and cooling channels; design label positioning structures (vacuum ports, electrostatic adhesion slots); design mold collision and scratch prevention structures.
Label and Printing Design: Finalize the label artwork and determine the imposition layout; select the printing process (gravure, flexography, digital printing); produce sample labels and conduct on-press testing.
Automation Solution Design: Design the label magazine, as well as the travel range and gripping method for the label-picking robot; design an integrated solution for product removal, conveying, stacking, and packaging; plan the control system architecture for the entire production line (PLC, HMI, MES interfaces).
Auxiliary Equipment Selection and Procurement List: List specifications for dehumidifying dryers, chillers, mold temperature controllers, air compressors, etc.; determine the models for conveyor belts, counting devices, and packaging machines.
Project Schedule and Budget Preparation: Establish milestones for mold manufacturing, equipment procurement, and assembly/commissioning; prepare a detailed budget, including provisions for trial production and contingency costs.
Project Implementation
Mold Manufacturing and Trial Molding: Machining, heat treatment, and polishing of mold components; conducting T0 trial molding at the mold factory to inspect label placement and molding results; mold optimization and maintenance (e.g., adjusting suction holes, adding venting).
Label and Printed Material Production: Bulk printing, die-cutting, and inspection of labels; anti-static and dust-proof treatment for label packaging.
Injection Molding Machine and Auxiliary Equipment Procurement/Manufacturing: Procurement or manufacturing of high-speed injection molding machines (e.g., hybrid hydraulic-electric machines); procurement of dehumidifying dryers, chillers, etc., and completion of factory testing.
Automation System Integration: Assembly of robotic arms, label magazines, conveyor belts, and stackers; wiring of control systems and preliminary program debugging.
On-site Pre-assembly and Integrated Testing of the Complete Line: Assembling all modules into a complete line at Keming or the supplier’s facility; conducting dry-run tests to verify timing synchronization.
System Assembly and Testing
Equipment Positioning and Leveling: Position the injection molding machine, robotic arm, conveyor belt, and other equipment according to the layout diagram; adjust the leveling and install vibration-damping pads.
Water, Electricity, and Air Line Connections: Connect the cooling water, compressed air, power supply, and signal lines; check the air line seals and voltage stability.
Safety Device Inspection: Verify the functionality of safety doors, light curtains, and emergency stop buttons; check the safety interlocks between the robotic arm and the injection molding machine.
Individual Equipment Functional Testing: Perform an idle run of the injection molding machine (mold opening/closing, ejection, injection unit); test the movement of each robot axis and label retrieval from the label magazine; ensure auxiliary equipment (dryer, mold temperature controller) reaches set values.
Full-Line Idle Cycle Integration Testing: Without a mold in place, simulate the process of label retrieval → mold opening → label placement → mold closing → part retrieval → conveying; adjust the timing of each action and optimize the cycle time.
Trial Production and Acceptance
Mold and Label Setup: Install the IML mold and connect the vacuum/static generator; load standard labels and test the accuracy of the adhesion position.
Process Parameter Tuning: Set the barrel temperature, mold temperature, injection speed, and holding pressure; optimize cooling time and balance the molding cycle.
Small-batch trial production: Continuously produce 100–500 molds, record the yield rate; inspect label positioning, fusion quality, and product dimensions.
Performance metric verification: Measure product weight, wall thickness, and label adhesion; test whether the line’s cycle time meets the designed capacity; verify that the scrap rate is below the agreed-upon threshold (e.g., <1%).
Continuous operation testing of the automation system: Run continuously for 24 hours and record the number of shutdowns; verify the accuracy of stacking and packaging counts.
Signing of the acceptance report: Compile test data and have both parties confirm compliance with requirements; develop a corrective action plan for outstanding issues; sign the provisional or final acceptance form.
On-site installation
Site Survey and Preliminary Preparation: Verify the workshop floor’s load-bearing capacity, ceiling height, and logistics pathways; identify locations for cooling water, power, and compressed air connections.
Equipment Hoisting and Unpacking: Arrange for a crane and forklift to move the equipment to the installation site; remove packaging and inspect the exterior and spare parts.
Leveling and Securing: Use a spirit level to adjust the equipment’s level; secure with anchor bolts or install vibration-damping pads.
Preliminary Connections: Connect the main power supply and control cables; connect cooling water lines and air hoses.
Site Cleanup and Signage: Clean up installation debris and post safety and operating signs.
Process and Production Support
Operational Training: Train customer operators (injection molding machines, robotic arms, and automation interface operation); train process engineers (parameter adjustment, mold maintenance, and label replacement); train maintenance technicians (troubleshooting common issues and replacing wear-and-tear parts).
Process Documentation and SOP Delivery: Provide Standard Operating Procedures (SOPs); provide mold maintenance guidelines and label storage requirements; provide electrical schematics and pneumatic diagrams for the entire production line.
Remote and On-site Technical Support: Establish a 24/7 remote support hotline; conduct regular on-site inspections (e.g., quarterly); respond to emergency faults within 4 hours and arrive on-site within 24 hours.
Spare Parts Supply and Maintenance Agreement: Provide a list of wear-and-tear parts and recommended stock levels; sign an annual maintenance contract that includes preventive maintenance; system software upgrades and feature enhancements.
Continuous Optimization and Data Iteration: Collect customer production data to optimize molds or processes; provide modular retrofit solutions based on new product requirements; conduct regular follow-ups to gather suggestions for improvement.
acmeplas
Full-industry-chain solution supplier: self-developed injection machines, molds & automation systems
ZHAFIR
Haitian High-End All-Electric Injection Molding Machines: High Precision, Energy Efficient & Intelligent
Demag
70-Year German Brand | Precision, Stability & Energy Efficiency
BORCHE
Two-Plate Intelligent Injection Molding Machine Expert | Energy Efficient & High Precision
Robotic Arm and Labeling Station
The labeling magazine is a device in the IML automation system used to store, separate, and position pre-cut labels. It ensures that the robot arm picks up a single label from the same position and in the same orientation every time, preventing double or multiple labels from sticking together and ensuring positional accuracy when the label is placed into the mold.
Online Visual Inspection
Visual inspection serves as the “intelligent quality inspector” on IML production lines. Capable of performing comprehensive inspections on every product at millisecond speeds and with precision far surpassing that of human inspectors, it is a critical component in achieving unmanned production with high yield rates.
Stacker
The stacking machine is a key piece of equipment for downstream automation in IML production lines. It neatly stacks injection-molded products in predetermined quantities to prepare them for subsequent packaging, effectively replacing manual stacking and serving as a crucial component in enabling “unmanned factory” production.
Baling machine
The packaging machine is a critical piece of equipment at the end of the IML production line, serving as the link between manufacturing and warehousing. By automatically sealing, strapping, and wrapping stacked products, it completes the final packaging process for storage and transportation, marking the “final step” in the fully unmanned operation of a “lights-out factory.”
4-cavity mold
Simply replace the mold core to switch production lines
4-cavity mold
Simply replace the mold core to switch production lines
4-cavity mold
Simply replace the mold core to switch production lines
4-cavity mold
Simply replace the mold core to switch production lines
